SAML Assertion with Implicit Login
Description

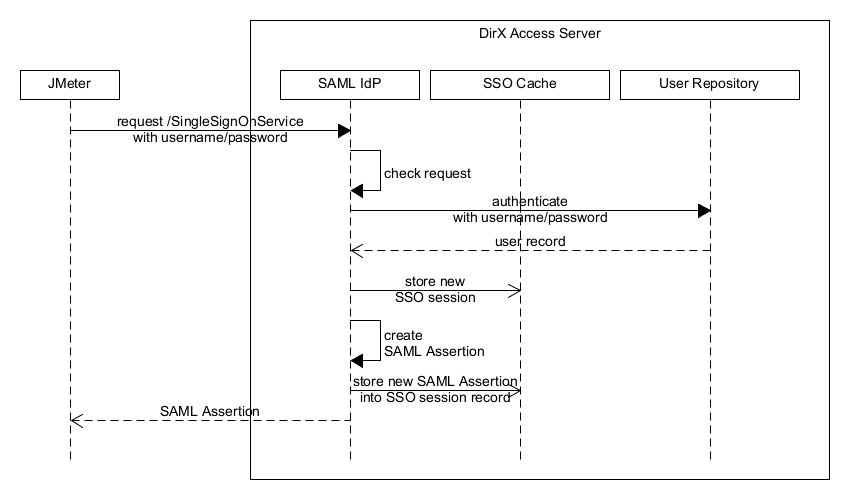

This scenario covers the situation in which a single request at the SAML /SingleSignOnService endpoint is sent. This request demands the issuance of SAML Assertion with basic parameters. The request also contains username/password credentials, and the authentication of the requesting entity is done implicitly, without further communication.
Each request creates a single new session. None of the sessions are used in further communication, however, all of them remain stored in the session cache memory.
Deployment Diagram
The deployment is as described in General Deployment Diagram.
Considered Influence Factors
The fact the SSO session and SAML Assertion generated by the first request are not used with any subsequent request renders many configuration parameters irrelevant for the performance of this scenario. The computational complexity of the atomic task itself emphasize the importance of memory configuration with respect to both, the JVM memory and the cache memory.
Chosen Testing Types
Maximal Performance State
Results

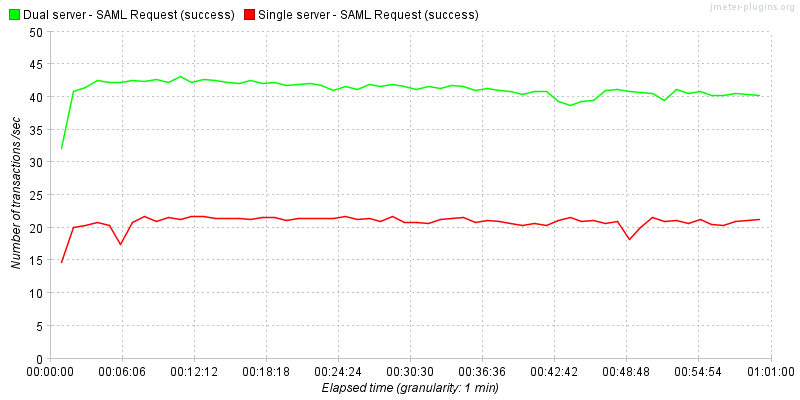

The Figure 2 depicts the values collected when performing this testing scenario in both, single and dual server deployments. With the correct configuration of the load balancer, it is noticeable that the throughput almost doubles with the addition of the second server.
The graphs also show the almost constant throughput with regards to the linear growth of existing SSO sessions and managed SAML assertions (when dealing with order of small hundreds of thousands).
Recommended/Expected Values
Values shown in Figure 2 have been observed on a several different projects and are generally believed to be the values to aim to when configuring the system.
Testing Tool Input
The JMX file that can be imported and (with marginal changes dependent on the environment parameters) used for testing in the target environment is enclosed below.
Variables
The JMX file should be updated to match your environment.
Open the JMX file in JMeter, select
Test Plan → Thread Group and update:
-
CSV Data Set Config→Filename- a CSV file containing<user name>, <password>rows used for authentication. -
HTTP Authorization Manager→Base URL- DirX Access server URL. -
POST IdP→PathandPort- DirX Access server path and port.
Unstable Environment
Results

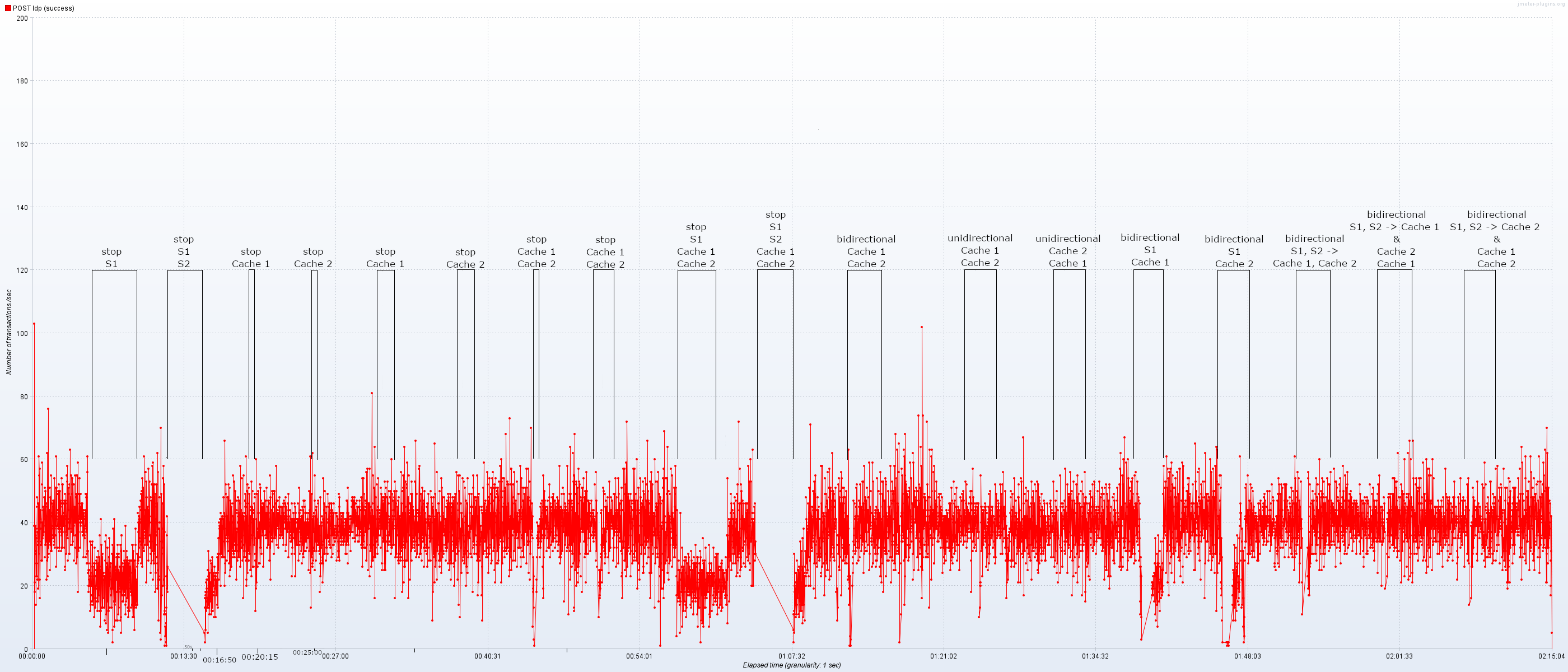

The Figure 3 depicts the behavior of this testing scenario in an unstable environment. The expected behavior, also clearly seen in the graph, is that when a system is fully functional after previous malfunction, the throughput increases back to a stable value. This graph depicts successful requests only.
Graph contains annotations of unstable behavior. First part of our Stability testing consists of turning off and on our nodes (DXA Servers and DXA Cache Servers). Testing in second part uses software to simulate network instability. The whole stability testing scenario takes 2 hours and 15 minutes. DXA nodes and their corresponding graph annotations are depicted by following table:
| DirX Access node | Graph annotation |
|---|---|
DirX Access Server 1 |
S1 |
DirX Access Server 2 |
S2 |
DirX Access Cache Server 1 |
Cache 1 |
DirX Access Cache Server 2 |
Cache 2 |
In the first part, we focus on DXA Servers which show how throughput is affected with both, one or no servers running. This behavior could be seen on Figure 2, but here we focus on the return to the original throughput. Next testing focuses on DXA Cache Servers and how they affect the SAML behavior. Here we focus on time at which the cache servers were turned back on. With this we are testing the assumption that none of our servers or cache servers will notice that the other cache servers went down. While testing this, we need to keep in mind that one cache server is configured as leader (Cache 1) and the other as follower (Cache 2). Based on the graph we can see, that turning cache server down results in lowering the throughput, but only for a moment.
Second part uses software to simulate network instability, but our goal here is not to cut off specific node and interrupt every communication attempt, but to interrupt the communication between some nodes.
Graph annotations describe the way in which the communication is interrupted.
In case of bidirectional we interrupt communication between mentioned nodes and unidirectional shows that the first mentioned node cannot communicate with the second mentioned node, but the other way is still possible.
Last three annotations are a bit more complex than the previous ones.
For example, let’s pick the last annotation:
bidirectional S1, S2 → Cache 2 & Cache 1 Cache 2 means that both DXA Servers cannot communicate with Cache 2 and Cache 2 cannot communicate with them, but DXA Servers can communicate with each other and Cache 1, the part after the & represents that DXA Cache Servers cannot communicate with each other, but Cache 1 can communicate with DXA Servers.
Last few minutes on the graph concludes our testing round and shows how our testing environment is back to its original values. The whole stability testing shows that our implementation of SAML recovers from every simulated instability of network environment.
