Overview

The DirX Identity Web Center for Password Management is a licensed package that provides a separate Web application intended for password management only. It offers the following features:

Users can choose different passwords for different accounts.
Service desk users can change a user password after having verified the user’s challenge responses.

The overall principle is to use one master password that can be synchronized automatically to other target systems. The user can select these accounts. The other accounts can have different passwords. The administrator defines the password master systems. The master systems and the DirX Identity user must have the same password.

The master password can be changed by the user or by the service desk using the challenge/response feature.

Definition of password reset and password change:

Password reset – the system generates a new password, sends it to the user and the user must change the generated password on the next login.
Password change – the user defines a new password which is valid for the period specified by the password policy’s expiration duration.

Feature Comparison

The following table illustrates the enhanced features of Web Center for Password Management compared to the standard Web Center functionality:

Feature	Web Center (standard)	Web Center for Password Management
Forgot password - Set new password using authentication questions	Yes	Yes
Change password	Yes	Yes
Set authentication questions	Yes	Yes
Login with Active Directory domain account	No	Yes
Synchronize master password for all accounts	Yes	Yes
Set password for only a subset of accounts	No	Yes
Service desk can reset user (master) password	Yes	Yes
Service desk can reset user master and account password by verifying user’s responses to authentication challenges	No	Yes

Feature

Web Center
(standard)

Web Center for
Password Management

Forgot password - Set new password using authentication questions

Yes

Change password

Yes

Set authentication questions

Yes

Synchronize master password for all accounts

Yes

Set password for only a subset of accounts

Yes

Service desk can reset user (master) password

Yes

Service desk can reset user master and account password by verifying user’s responses to authentication challenges

Yes

As a pre-requisite, the end users and their accounts need to be known to DirX Identity and the system must be configured appropriately.

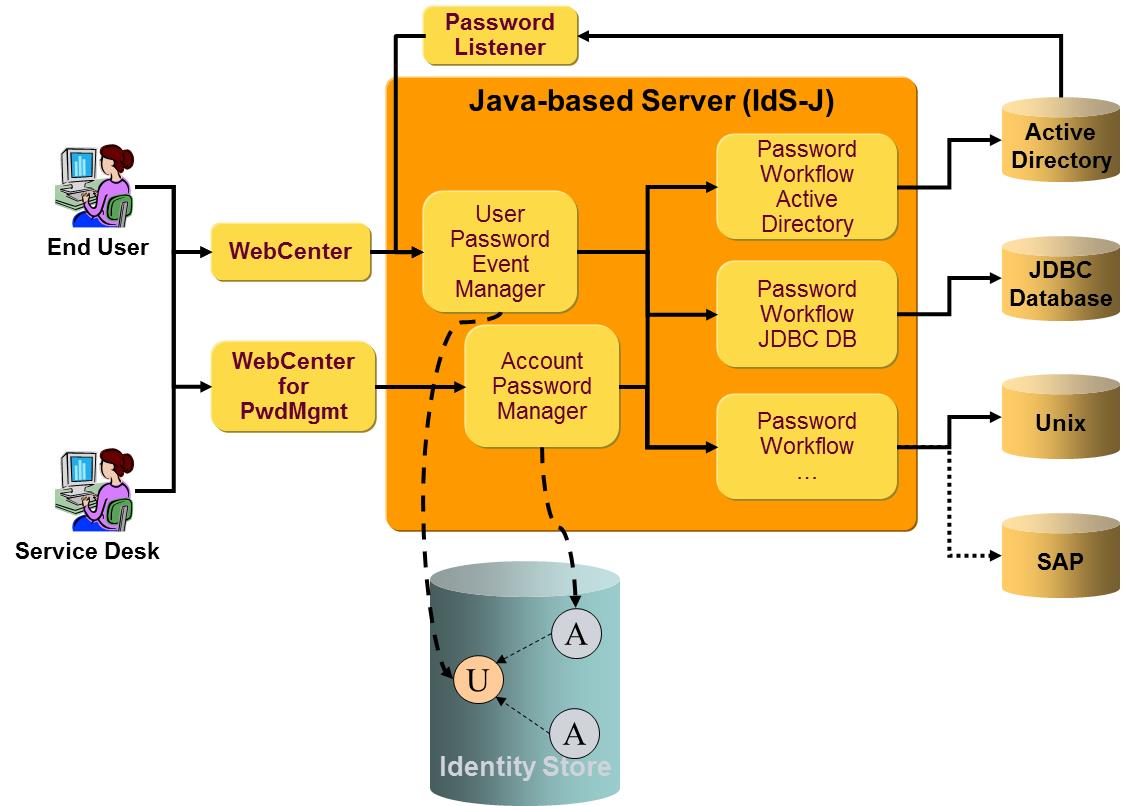

The following figure illustrates the activity flow in end user and service desk password management:

Figure 1. Users, Accounts and Password Changes

As illustrated in the figure:

End users can change their passwords using Web Center:

Standard Web Center sends the new password to the DirX Identity Messaging Service. The User Password Event Manager picks it up, changes it at the DirX Identity user entry, finds the user’s accounts and requests the appropriate Set Password workflows to update it at the corresponding target systems in real-time.

The enhancement in Web Center for Password Management allows users to select a subset of their accounts for password change; the message with the new password is sent to the Account Password Manager workflow. It changes the password at the listed accounts and requests the appropriate Set Password workflows to update it at the corresponding target systems in real-time.
End users can change their passwords in an Active Directory domain instead of using the Web Center user interface:

The DirX Identity Password Listener obtains the changed password from the Active Directory domain controller and sends it to the DirX Identity Messaging Service. The User Password Event Manager picks it up, finds the associated user entry in DirX Identity and updates the password there. Then it finds the user’s accounts - except for the Active Directory domain – and triggers the Set Password workflows for each corresponding target system. Note that in this case the new password is set for all accounts.

When end users change their passwords in an external LDAP server, they will not be synchronized to DirX Identity and thus both passwords will be different.
