Managing DirX Identity Connectivity

Setting up and maintaining the connected directory structure

Setting up and maintaining the authentication information (bind profiles)

Setting up and maintaining the schema and attribute configuration

Setting up and maintaining the password scenario structure

Setting up and maintaining the password workflows

Installing servers

Configuring and maintaining servers and services, including auditing and logging

Setting up maintenance scripts

Distributed installation of components; for example, servers

Maintaining the distributed Identity system

Managing administrative accounts

Setting up and maintaining the features that guarantee data security, including key management for data encryption and signature as well as the creation of secure connections

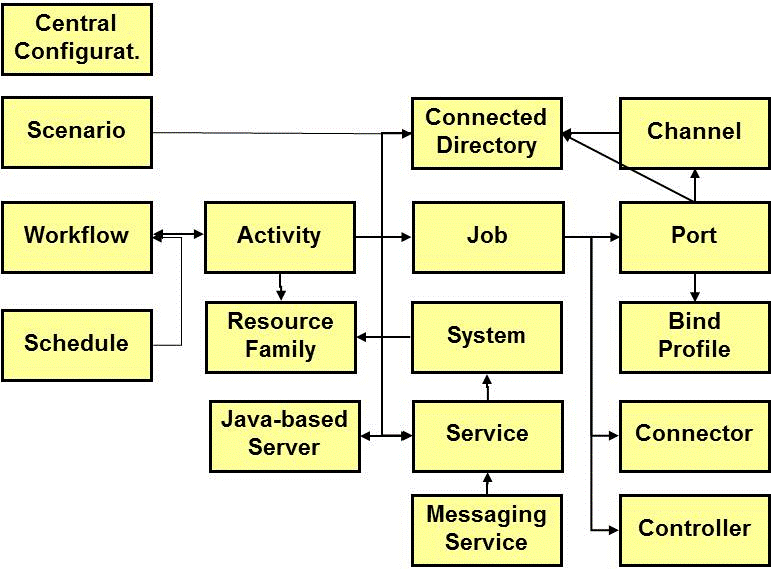

Scenario configuration objects: combine sets of connected directories and synchronization workflows and represent them graphically for a better overview and easier configuration.

Connected directory configuration objects that represent either source or target system instances including the Identity Store. Bind profiles hold the user and password information for a specific target system access. If you assign the connected system to a Java-based server, then this server runs the Java-based provisioning and import workflows.

Java-based workflow configuration objects that consist of activities: procedures that transfer data from source to target connected directories.

Java-based activity configuration objects: process steps that are combined to make a workflow. A Java-based workflow is built from a join and an error activity. The join activity is responsible for synchronizing the data between two connected systems. The error activity in event-triggered workflows receives just the entries that could not be provisioned and typically sends an email with the error information. The type of provisioning workflow and how the data are synchronized is determined by the controller configured in the join activity.

Java-based job configuration objects are not visible at the user interface level but they exist as part of the XML configuration files. They implement the activity; for example, a join operation or error handling.

Port configuration objects represent the access to a connected system for a workflow. Such a connected system might not only be a target system, but also the message broker and an email server. The port especially configures the connector to access the connected system. A provisioning port combines several channel configuration objects for all the object types that must be provisioned in or from the connected system.

Java-based channel configuration objects. A channel represents an object type or an object-to-object relation for a provisioning workflow to a connected system. Typical channels are for accounts and groups and for account-group memberships. A channel describes how to find objects of this type in the connected system, which attributes to read and write, and how to map them from the other connected system.

Schedule configuration objects that define when to run workflows.

Connector type objects and the XML files that describe their presentation at the user interface level.

The Java-based Identity Servers (IdS-J servers) that run the workflows.

The server objects that refer to service and system objects to define important information for access.

The messaging service that allows for transferring Java Messaging Service (JMS) messages between DirX Identity components.

Resource family objects that allow for distributing provisioning activities over several Java-based Identity servers.

Topic configuration objects that define JMS message types.

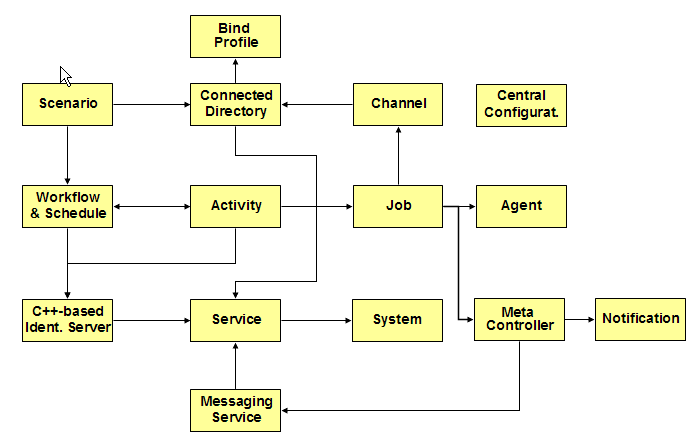

Scenario configuration objects: specific sets of connected directories and synchronization workflows used for Tcl-based workflows.

Connected directory configuration objects that represent either source or target system instances including the Identity Store. Bind profiles hold the user and password information for a specific target system access.

Tcl-based workflow configuration objects that consist of activities: procedures that transfer data from source to target connected directories.

Tcl-based activity configuration objects: sequential process steps that are combined to make a workflow. Tcl-based activities can represent jobs or complete workflows.

Tcl-based job configuration objects: fully configured agents that can be used by Tcl-based activities in workflows.

Agent configuration objects defined by an agent type: un-configured programs or procedures that are called by a job. The meta controller acts as special agent and represents the join engine.

Tcl-based channel configuration objects.

Schedule configuration objects that define when Tcl-based workflows are to run.

Agent type objects and the XML files that describe their presentation at the user interface level.

All central notification definitions used by meta controller jobs.

Definitions for standard files that are recognized by the agent controller.

Central Tcl files used by meta controller jobs.

C-based Identity Servers (IdS-C servers) - the DirX Identity component that must exist on each host server on which an agent or a C connector is to run.

The server objects that refer to service and system objects to define important information for access.

The messaging service that allows for the transfer of JMS messages between DirX Identity components.
